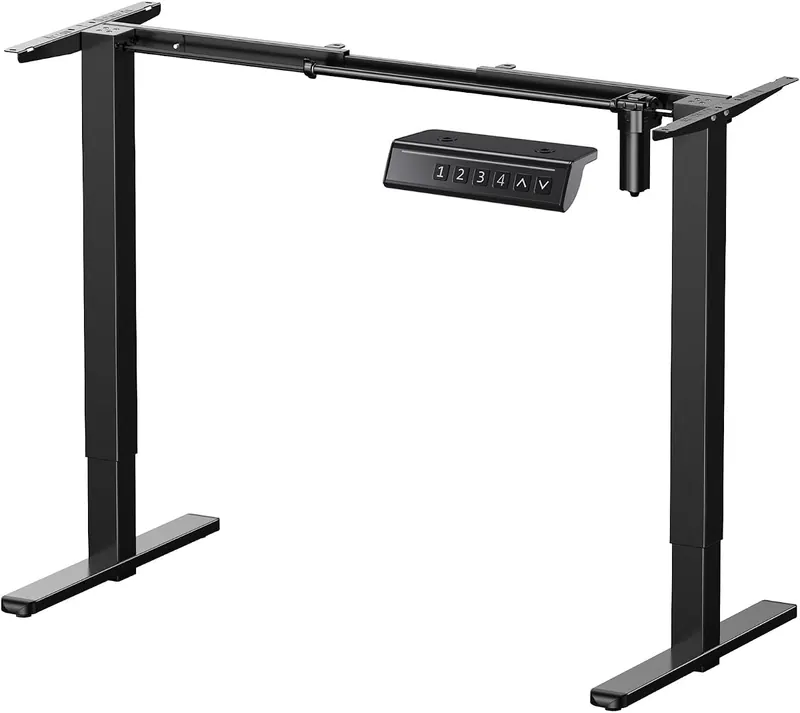

Electric Desk Frame, Single Motor - Black

Name: Electric Desk Frame, Single Motor - Black
Brand: ErGear
SKU: B08NPLKCTQ
Price: 99.98 USD
Availability: InStock
Rating: 4.7 (1360 reviews)

Keeping a top you already like

$99.98~~$139.99~~★★★★★ 4.7 (1,360)

Buy

What it is for

The most common reason a good desk gets thrown out is that it does not move. Buying the frame alone fixes that without losing the surface: the crossbar telescopes from 39.4 to 63.3 inches, which covers almost every ready-made top in that size class as well as a door, a scaffold board or a piece of worktop cut to size. No top is included, which is the whole point.

Check before you order. No desktop is supplied and none of the mounting holes are pre-drilled, because there is nothing to pre-drill them into. Budget for a top, a drill and a depth stop before ordering, and check the intended top is at least 3/4 inch thick so screws have something to bite.

What assembly actually means

Two jobs rather than one. The frame itself bolts together in about half an hour. Marking and drilling the top is the part that takes care: set the frame on the underside, square it by measuring both diagonals, mark through the mounting holes, then pilot-drill to a depth stop so no screw comes through the face.

What it changes

A telescoping crossbar means the frame can be squared to a top that is not a standard size, instead of the top having to match the frame.
One column keeps the underside of the finished desk almost entirely clear, which is what makes a home-built desk usable for storage underneath.
The 28.3 to 46.5 inch range is the same as the complete desks, so a self-built desk gets the full standing height rather than a shortened one.

In one line each

Frame only, no desktop supplied
Fits tops from 39.4 to 63.3 inches wide
Height range 28.3 to 46.5 inches, single motor
Rated to lift 176 lbs
Black powder-coated steel

Published figures

Fits desktops	39.4 to 63.3 in wide
Height range	28.3 to 46.5 in
Lift	Single motor
Load capacity	176 lb
Finish	Powder-coated steel
Colour	Black
Top included	No
Colour	Black
Model reference	B08NPLKCTQ

Figures as published for this model. Anything that has never been published is left out rather than estimated.

Where this one sits among the 5

The same figures as every other page in this section, lined up against the section itself. Being the biggest at something is not the same as being the best at it, so the last column says where a number puts this model and leaves the judgement to you.

Figure	This model	All 5 frames	Where that puts it
Load rating	176 lb	176 to 264 lb	The lightest-duty of the 5
Widest span	63.3 in	63.3 to 90 in	The narrowest of the 5

Ranges cover only the frames that publish the figure at all; a model that has never published one is left out of that row rather than counted as a zero.

Where it sits in the range

Of the 5 frames in this section this is the least expensive, with 4 above it up to $199.99. It carries a published list price of $139.99, so the figure above is below that rather than the usual asking price.

It carries 1,360 customer reviews at 4.7 out of five, which is the highest rating in the section. Those numbers come from the retail listing and are reproduced rather than curated, including when they are unflattering.
